Conservatory

More living space made of glass and steel

Conservatory

We will help you.

Conservatories extend your living space out into nature. They offer protection from the elements and a cosy atmosphere. And at best, they enhance the appearance of the entire building. Whether it is the extension of existing structures or the worthy completion of a new building: The steel-glass solutions from RP Technik give planners the freedom to create spaces that combine the interior with the exterior. As the proven material steel also allows you to use filigree profiles for large window surfaces. Transitions - from the facade to the ridge or to the flat roof - thus become fluid in the best sense of the word.

All year round

enjoyment of light & nature

The best of two systems: The windows, doors and partitions of the rp fineline series are characterised by particularly narrow views. And the rp tec solutions for flat or sloping roofs can be used in conservatories as well as in complete thermal baths. The systems have very good thermal insulation and sound insulation values in common, which make them the ideal prerequisites for space made of steel and glass that can be used all year round.

References

large view

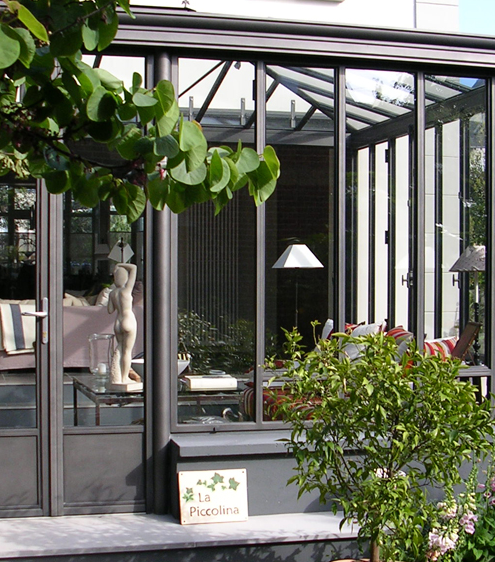

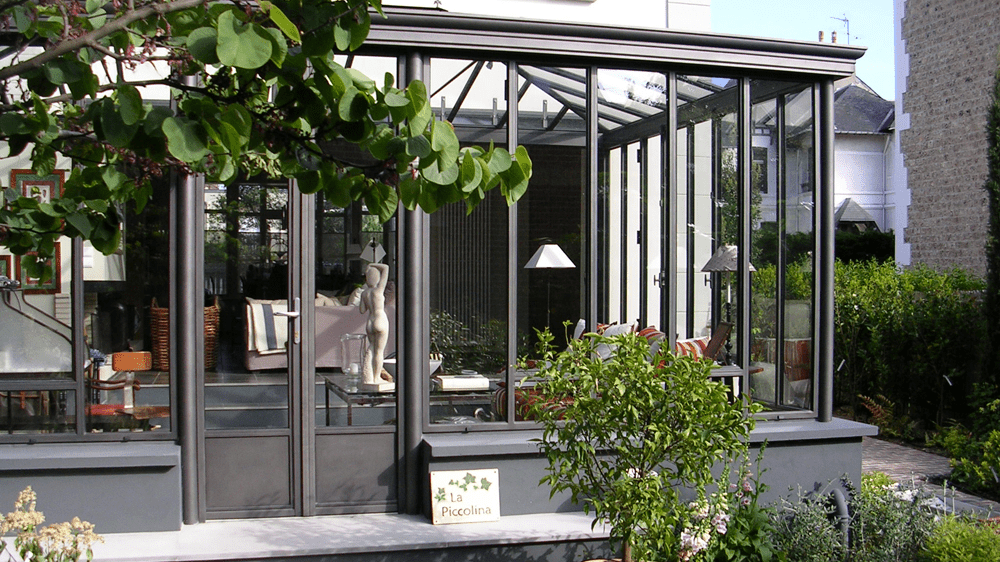

House Deauville

large view

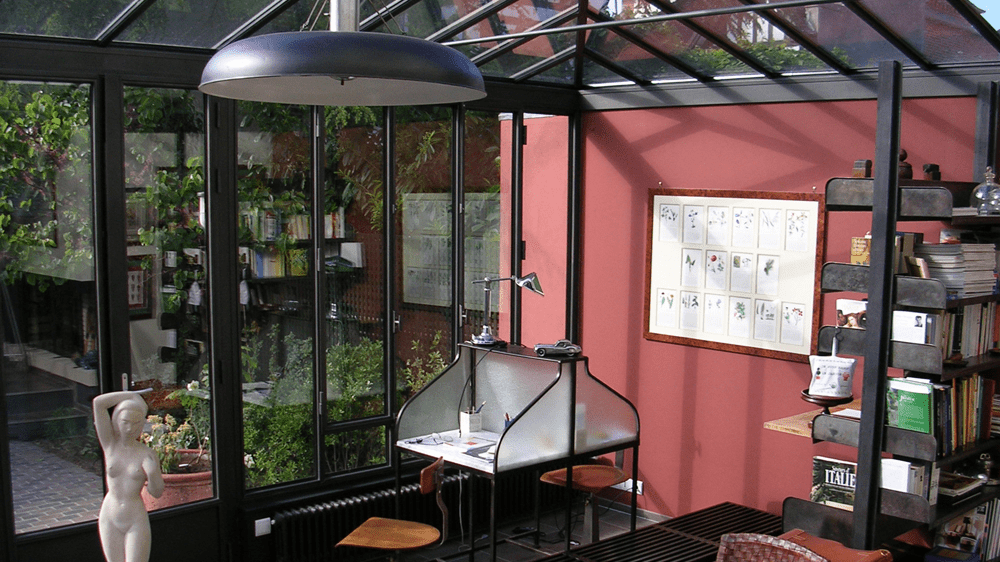

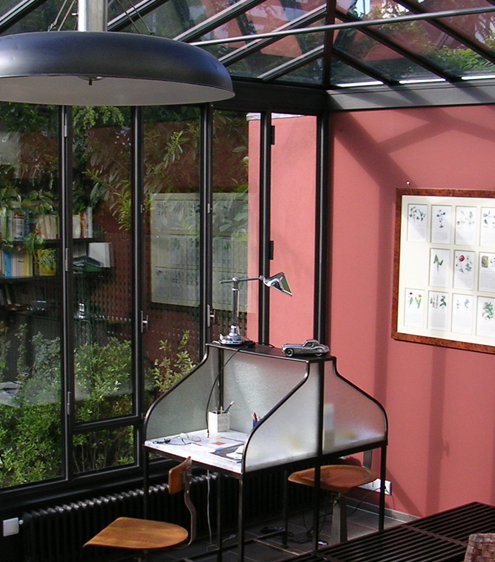

House Deauville inside

large view

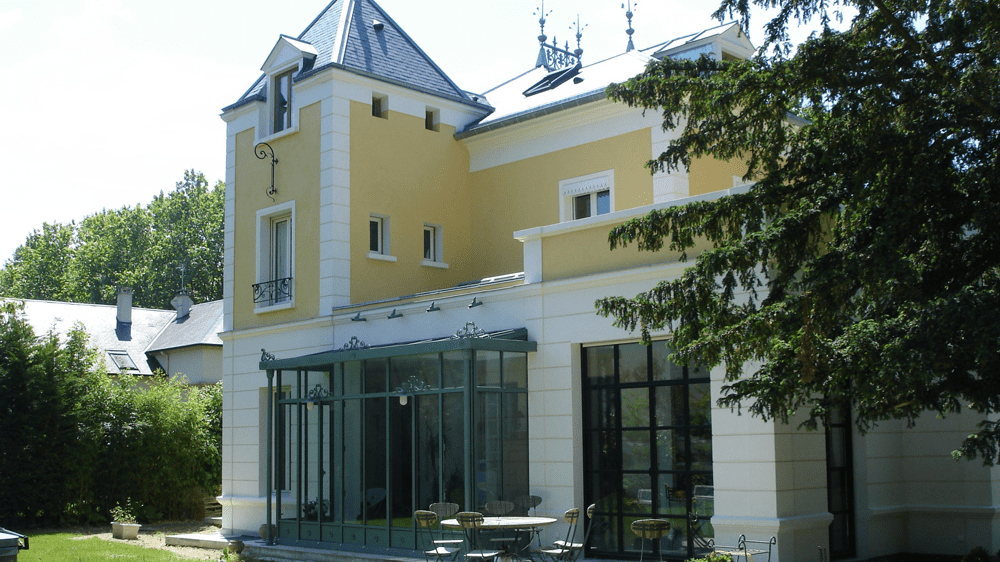

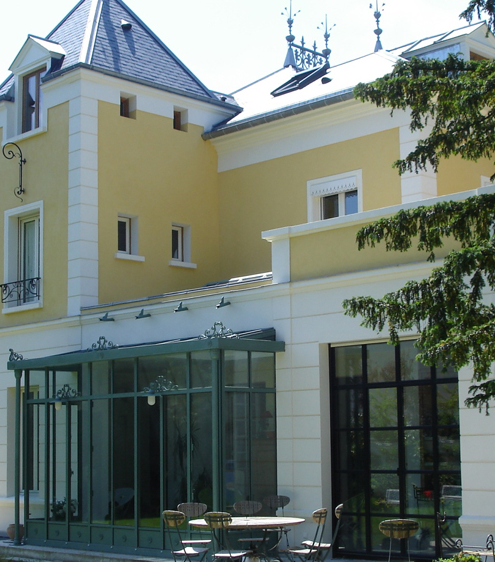

House Lafitte

large view

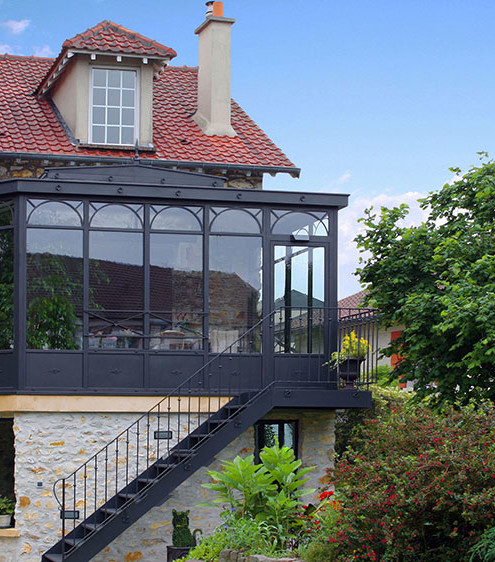

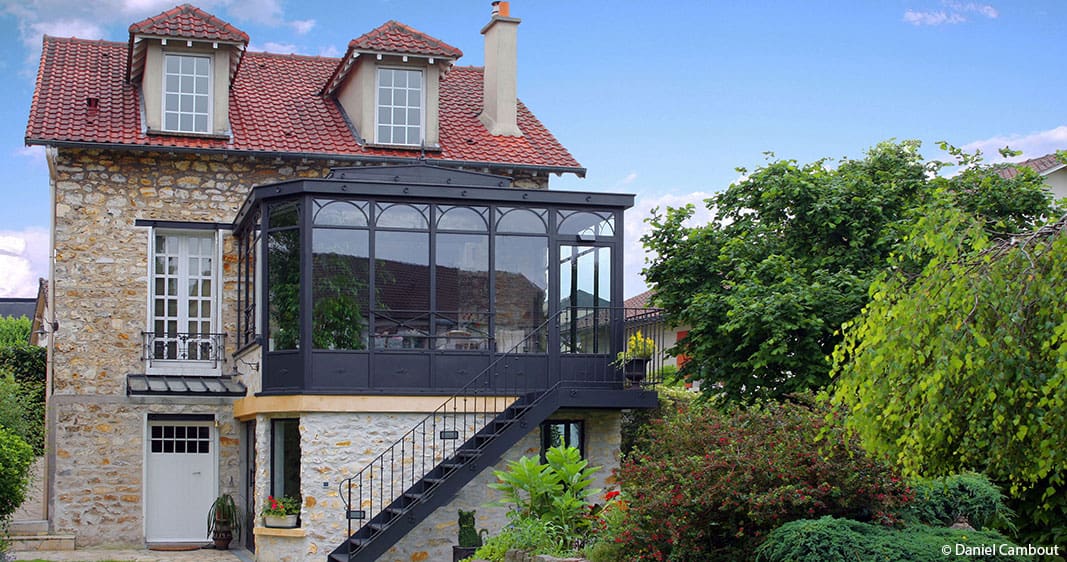

House

large view

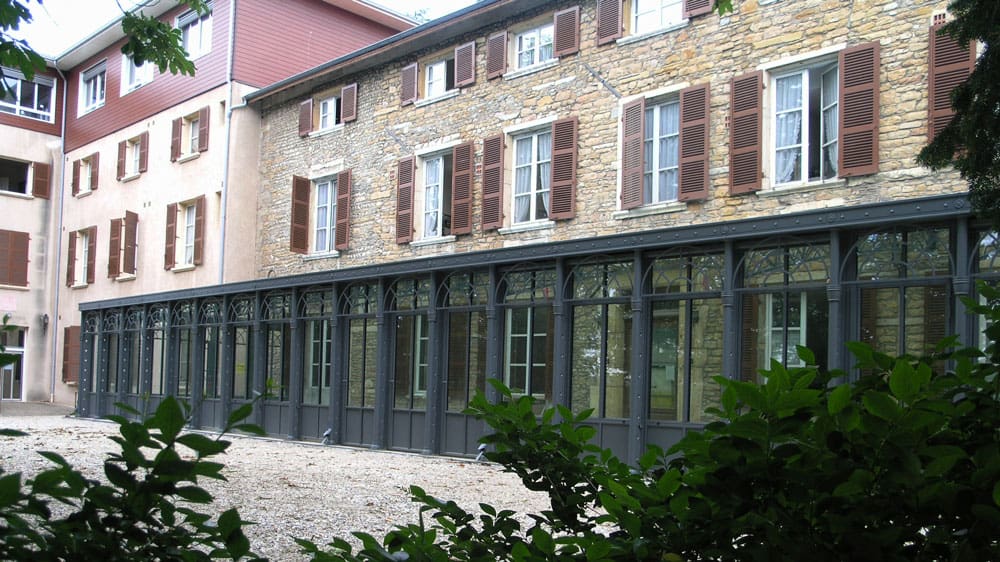

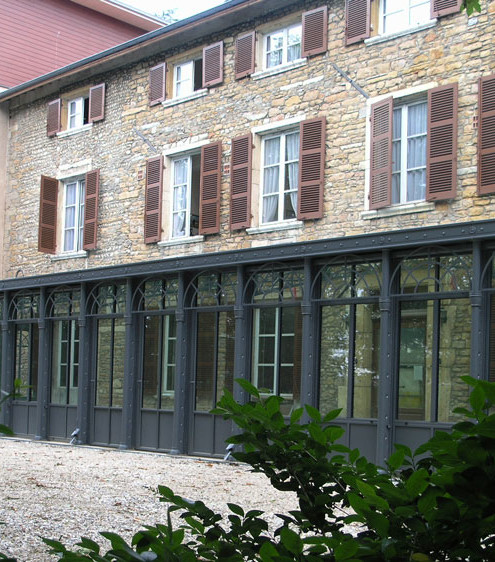

House Normandie

large view

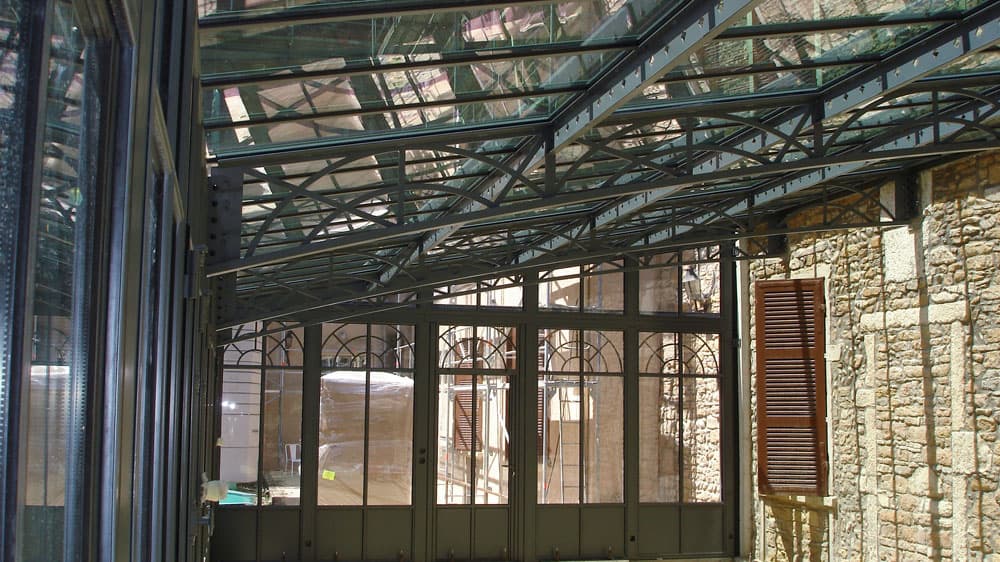

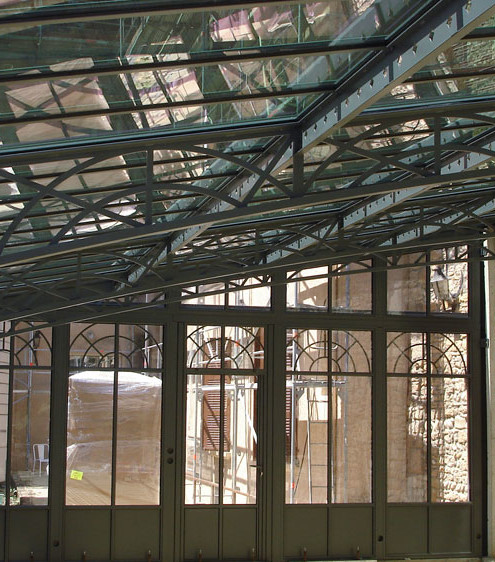

House Normandie

Product finder

9Results
rp tecline 40

Extremely slim mullion-transom curtain walls with a face width of only 40 mm

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
≤1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2
Thermal transmittance
Uf ≥ 0,68 W/m²K
More
Mixed facades of mullion-transom and add-on facades possible
3 mm wall thickness for high torsional stiffness
rp tecline 50
rp-tecline-50-3D-Kreuz-1920x1080px-72dpi

mullion-transom curtain walls with a face width of only 50 mm

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2/RC3
Thermal transmittance
Uf ≥ 0,69 W/m²K
More
Mixed facades of mullion-transom and add-on facades possible
“ProGrip” connection system for a secure grip
rp fineline 70W

Extremely slim steel window and partition wall design system

Resistance under wind load
≤C5 / B5
Air permeability
≤4
Watertightness
≤E900
Impact strength
1
Burglar resistance
RC2 (turn/tilt, fixed glazing)
Thermal transmittance
Uf≥ 1.5 W/m²K
Sound insulation
≤ 50 dB
Continuous performance test
2
Mechanical performance
Requirements of Class CW / TC 2 / A fulfilled
Mechanical strength
4
More
Various window types and opening styles, opening inwards and outwards
5 glazing bead designs
rp tecline 60
rp-tecline-60-3D-Kreuz-1920x1080px-72dpi

Mullion-transom facade with 60 mm face width

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
≤1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2/RC3
Thermal transmittance
Uf ≥ 0,68 W/m²K
More
Mixed facades of mullion-transom and add-on facades possible
“ProGrip” connection system for a secure grip
rp fineline 70D
rp fineline 70D – thermally insulated design profile system for steel doors, featuring extremely slim face widths

Extremely slim steel door system (thermally insulated)

Resistance under wind load
≤C3 / B3
Air permeability
≤3
Watertightness
≤4A
Impact strength
1
Thermal transmittance
Uf≥ 1.7 W/m²K
More
3 design variants for lock case integration
5 glazing bead designs

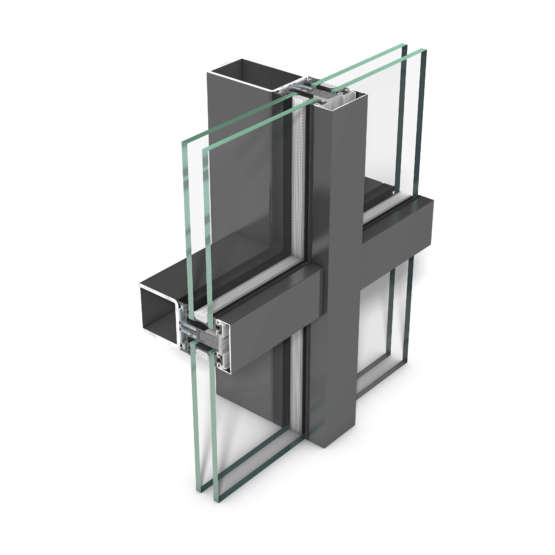

rp tec 50-1
rp tec 50-1, add-on curtain wall of mullion-transom design for passive building requirements

Add-on curtain wall of mullion-transom design for steel and wooden substructures

Resistance under wind load
+2000/-3200 Pa; Safety +3000/-4800 Pa
Air permeability
AE
Watertightness
RE 1500
Impact strength
E5-I5
Burglar resistance
RC 3
Thermal transmittance
Ucw≥0.60 W/m²K (0.56 in Variant “Plus”)
Sound insulation
≤ 47 dB
More
Meets passive building requirements
Also suited for 0° roof glazing

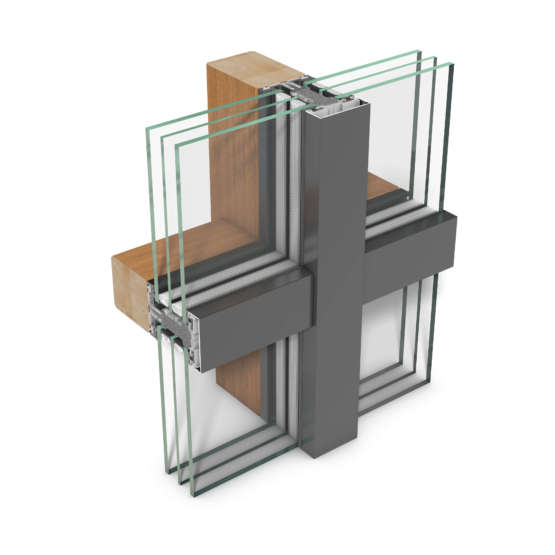

rp tec 55-1
rp tec 55-1, add-on curtain wall of mullion-transom design for passive building requirements

Add-on curtain wall of mullion-transom design for steel and wooden substructures

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800 Pa
Air permeability
AE
Watertightness
RE 1500
Impact strength
E5-I5
Burglar resistance
RC 3
Thermal transmittance
Ucw ≥ 0.55 W/m²K (Plus version)
Sound insulation
≤ 47 dB
More
Meets passive building requirements
Also suited for 0° roof glazing

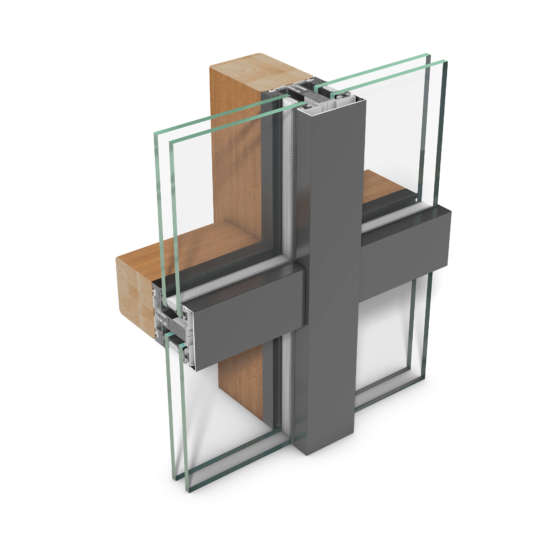

rp tec 60-1
rp tec 60-1, add-on steel curtain wall for passive building requirements

Add-on curtain wall with 60 mm face width for passive building requirements

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800
Air permeability
AE
Watertightness
RE1500
Impact strength
E5-I5
Thermal transmittance
Ucw≥ 0,82 W/m²K
Sound insulation
≤ 47 dB
More
Add-on curtain wall of mullion-transom design for steel and wooden substructures
3-level sealing system

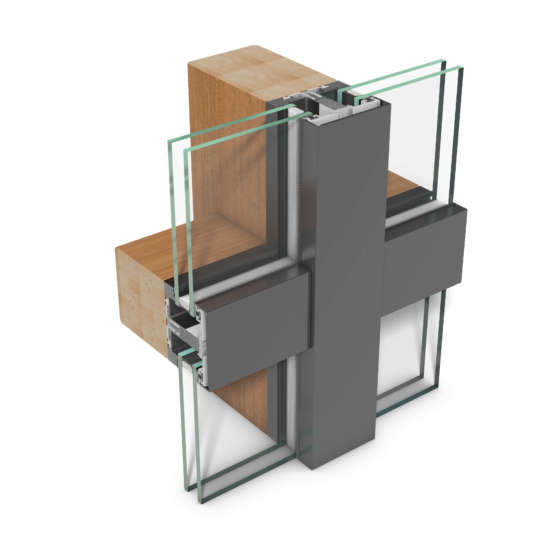

rp tec 80-1
rp tec 80-1, add-on steel curtain wall for passive building requirements

Add-on curtain wall with 80 mm face width for passive building requirements

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800 Pa
Air permeability
AE
Watertightness
RE1500
Impact strength
E5-I5
Thermal transmittance
Ucw ≥ 0,63 W/m²K
Sound insulation
≤ 47 dB
More
Structural glazing curtain wall designed as an add-on structure for steel and wooden substructures
3-level sealing system

rp tecline

The
Facade
Line

Filigree Mullion-transom curtain walls made of steel with face widths of 40, 50 or 60 mm.
