The crowning
for facades

Add-on steel
curtain walls

RP Technik add-on curtain wall systems epitomise versatility: they are unique, adaptable and flexible. Based on a basic structure that suits all functional requirements, face widths of 50, 55, 60 and 80 mm can be implemented for substructures made of either wood or steel. RP Technik add-on curtain wall systems can be used to construct vertical curtain walls, polygonal curtain walls up to 300 and glass roofs with 0° inclination.

7Results
rp tec 50-1
rp tec 50-1, add-on curtain wall of mullion-transom design for passive building requirements

Add-on curtain wall of mullion-transom design for steel and wooden substructures

Resistance under wind load
+2000/-3200 Pa; Safety +3000/-4800 Pa
Air permeability
AE
Watertightness
RE 1500
Impact strength
E5-I5
Burglar resistance
RC 3
Thermal transmittance
Ucw≥0.60 W/m²K (0.56 in Variant “Plus”)
Sound insulation
≤ 47 dB
More
Meets passive building requirements
Also suited for 0° roof glazing

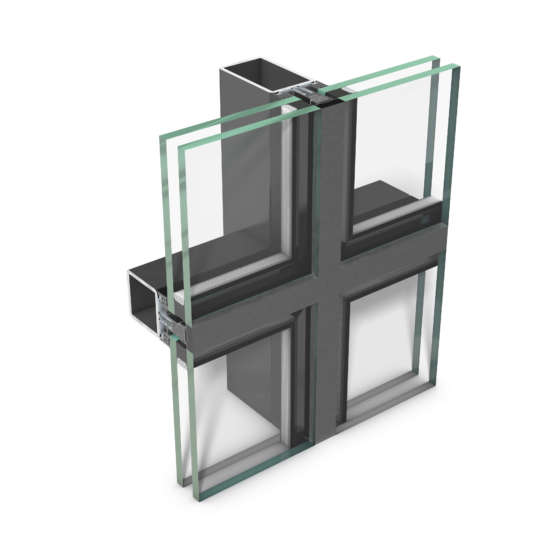

rp tec 50-1SG
rp tec 50-1SG, all-glass curtain wall serving as an add-on structure of mullion-transom design

All-glass add-on curtain wall (structural glazing)

Burglar resistance
RC 2
More
Structural glazing curtain wall designed as an add-on structure for steel and wooden substructures
Burglar resistance up to RC2
rp tec 55-1
rp tec 55-1, add-on curtain wall of mullion-transom design for passive building requirements

Add-on curtain wall of mullion-transom design for steel and wooden substructures

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800 Pa
Air permeability
AE
Watertightness
RE 1500
Impact strength
E5-I5
Burglar resistance
RC 3
Thermal transmittance
Ucw ≥ 0.55 W/m²K (Plus version)
Sound insulation
≤ 47 dB
More
Meets passive building requirements
Also suited for 0° roof glazing

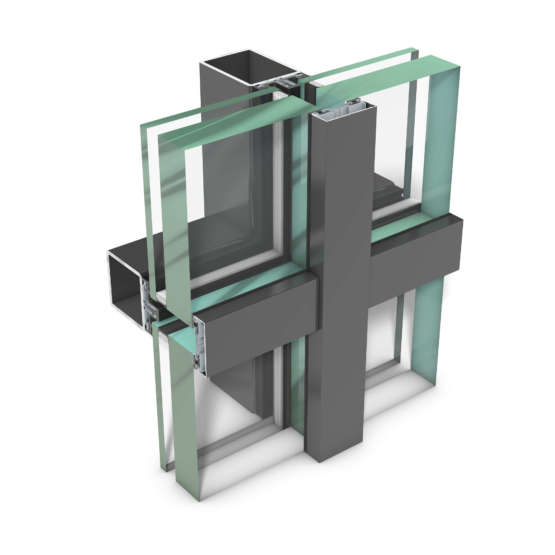

rp tec 55-1BR
rp tec 55-1BR, steel add-on curtain wall for high safety requirements

Add-on steel curtain wall for bullet and burglar resistance

Air permeability
AE
Watertightness
RE 1500
Impact strength
E5-I5
Bullet resistance
FB 4
Burglar resistance
RC 3
Thermal transmittance
Ucw ≥ 0,59 W/m²K
More
Add-on curtain wall of mullion-transom design for steel and wooden substructures
Bullet resistance up to FB4 / Burglar resistance up to RC3

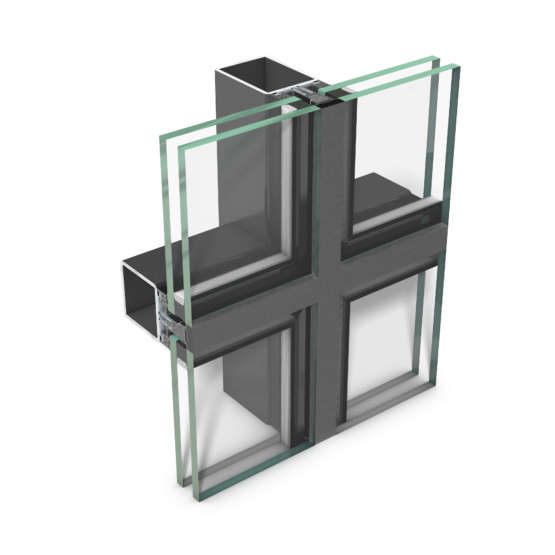

rp tec 55-1SG
rp tec 55-1SG, all-glass curtain wall (structural glazing) serving as an add-on structure

All-glass add-on curtain wall (structural glazing)

Burglar resistance
RC 2
Thermal transmittance
Ucw ≥ 0,84 W/m²K
More
Add-on curtain wall of mullion-transom design for steel and wooden substructures
Burglar resistance up to RC2
rp tec 60-1
rp tec 60-1, add-on steel curtain wall for passive building requirements

Add-on curtain wall with 60 mm face width for passive building requirements

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800
Air permeability
AE
Watertightness
RE1500
Impact strength
E5-I5
Thermal transmittance
Ucw≥ 0,82 W/m²K
Sound insulation
≤ 47 dB
More
Add-on curtain wall of mullion-transom design for steel and wooden substructures
3-level sealing system
rp tec 80-1
rp tec 80-1, add-on steel curtain wall for passive building requirements

Add-on curtain wall with 80 mm face width for passive building requirements

Resistance under wind load
+2000/-3200 Pa; Security +3000/-4800 Pa
Air permeability
AE
Watertightness
RE1500
Impact strength
E5-I5
Thermal transmittance
Ucw ≥ 0,63 W/m²K
Sound insulation
≤ 47 dB
More
Structural glazing curtain wall designed as an add-on structure for steel and wooden substructures
3-level sealing system

rp tec

The
Facade
Line

Flexible mullion-transom curtain walls, add-on curtain walls and roof glazing solutions made of steel.
