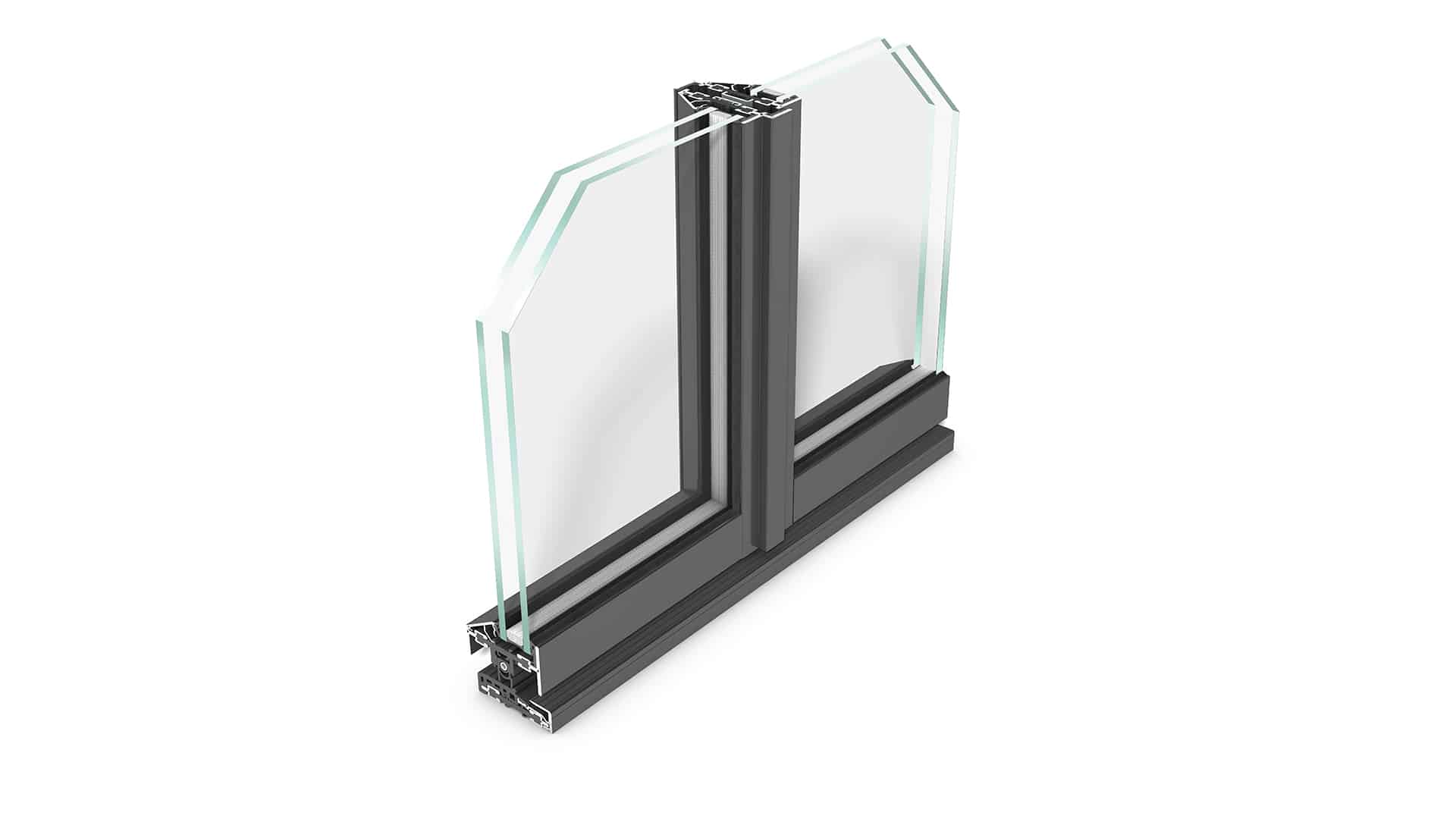

rp fineline 70D
rp fineline 70D
Thermally insulated design system for steel doors with extremely slim face widths for ambitious new building projects and renovations subject to monument preservation requirements.
Drag to rotate 360°, zoom with the mouse wheel, right mouse button drag moves the view
Planning advantages
- Extremely slim face widths of 45 mm (leaf-frame combination)
- Large dimensions are possible due to patented composite technology for thermally insulated profiles
- 5 different glazing bead contours, identical for windows and doors
- 3 design variants for lock case integration
- Stainless steel barrel hinges of only 15 mm in diameter; can optionally be coated in every RAL colour
- Homogeneous outer appearance due to concealed drainage
- 70 mm profile depth
- 3 optional threshold solutions for rp fineline 70D doors: “normal threshold”, “zero threshold” and “old building threshold”
- Resistance under wind load : ≤C3 / B3
- Air permeability : ≤3
- Watertightness : ≤4A
- Impact strength : 1
- Thermal transmittance : Uf≥ 1.7 W/m²K
- Clip-on glazing beads for tool-free installation
- Insertable gaskets
- Dry and wet glazing is possible for frames and leaves
- Moulded parts for double casement variants and gaskets
Here you will find all documentation for downloading and online browsing!
rp fineline 70D single leaf door
By loading the video, you agree to YouTube's privacy policy.
Learn more
rp fineline 70D double sash door
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop-practice, episode 1: Installation of the tilt-turn fitting in the sash of rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 2: Installation of the tilt-turn fitting in the frame of rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 3: Installation of the wing of the rp fineline 70W
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 4: Preparing profiles for welding
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 5: Assembling the frame
By loading the video, you agree to YouTube's privacy policy.
Learn more
Workshop practice, episode 6: Grinding the frame
By loading the video, you agree to YouTube's privacy policy.
Learn more
Handles
Design is a question of attitude, of first impressions and long-term relationships. Following this idea, the design handle lines by RP Technik convince with a pure appearance and ergonomic handling. As an interface between windows and doors made of steel and the people who grasp them.
More >>
