rp hermetic

rp hermetic

Doors, windows, partition walls – rp hermetic is the steel system for spot-on functional solutions of attractive design. The well-thought-out modular system makes it possible to use an identically looking profile for various fire and smoke protection classes. This creates a uniform appearance throughout the building. And, with rp hermetic, meeting requirements in terms of sound insulation, burglar or bullet resistance is not a problem either.

You have the specs, rp hermetic offers you the solution – without fail.

Beautifully shaped and very safe

When high protection requirements are a criterion, rp hermetic is your go-to solution. The photo shows fire protection doors in a hospital.

Windows to the future

rp hermetic combines design with functionality. The photo shows an outwardly opening, motor-operated rp hermetic top-hung window.


Hotel Meeresbummler Stahl-Glas System Rp Hermetic 70D Detail Vorschau

Container Hotel Meeresbummler, Markdorf

For 16 years, the freight container travelled the oceans. Now, this long-serving “ocean rover” …

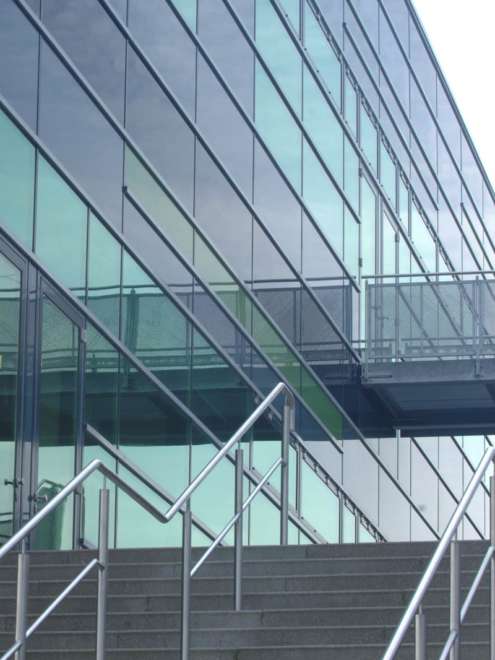

Congress Center Hamburg Stahl Fenstersystem rp hermetic 70W Detail 2 Vorschau

CCH, Congress Center Hamburg

The Congress Centre in the heart of Hamburg was built in 1973. Its conversion marked the start into …

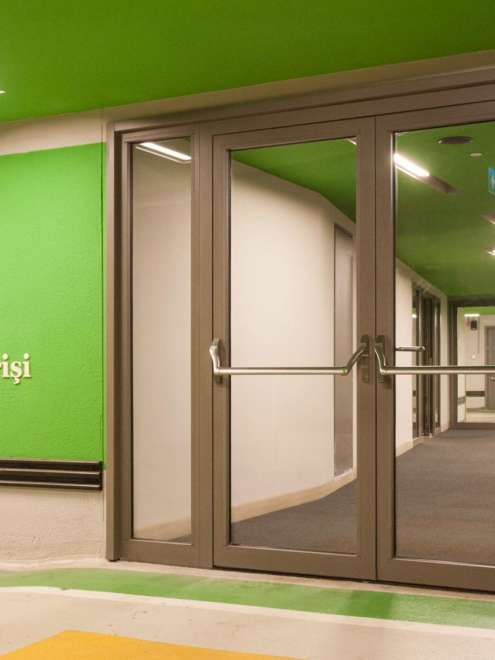

Hospital Istanbul Stahl Glas Tueren Brandschutz Detail 4 Vorschau

Altunizade Hospital Istanbul/TR

Acibadem is one of the largest international healthcare groups operating hospitals in and outside …

Products

15Results

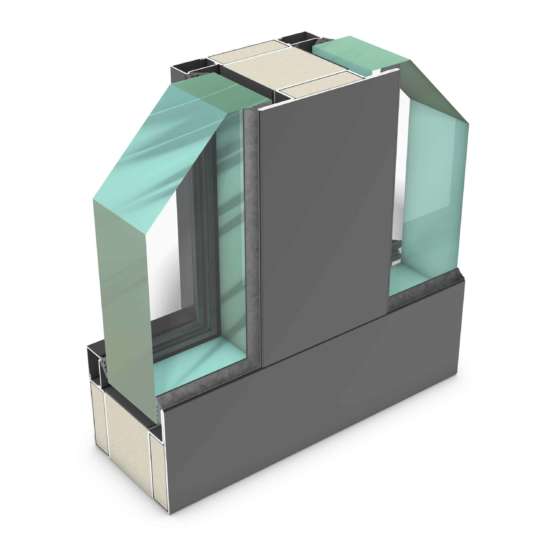

rp hermetic 90FP-120

Steel door profile system for high fire protection requirements

Fire protection EI (partition walls)
EI120
90 mm profile depth
1.8 mm wall thickness
rp hermetic 75BR

Bullet-resistant system for doors and partition walls

Bullet resistance
FB4NS; FB6NS
Bullet resistance FB4 and FB6
75 mm profile depth, 1.8 mm wall thickness

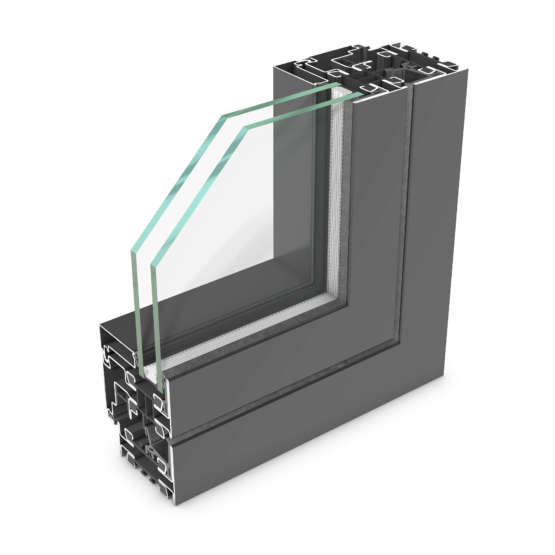

rp hermetic 70W

Steel window system for 1-leaf and 2-leaf windows and partition walls (thermally insulated)

Resistance under wind load
C2; C3; C4 / B4; C5 / B5 (Windows)
Air permeability
3; 4 (Windows)
Watertightness
8A (Windows)
Impact strength
1 (Windows)
Bullet resistance
FB4NS
Burglar resistance
RC1N; 2; 2N; 3
Thermal transmittance
> 1,7 W/(m²K) (Windows)
Continuous performance test: mechanical stress
2 (Windows)
Operating forces
1 (Windows)
Fall protection barrier glazing
fulfilled (Partition walls)
Mechanical performance
fulfilled
Mechanical strength
3 (Windows)
Tool-free installation of glazing beads
The glass surfaces of windows and partition walls are in the same surface plane

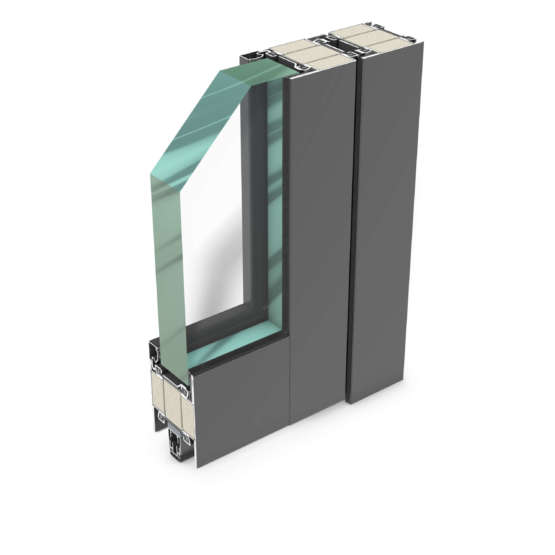

rp hermetic 70FP-90

Steel profile system for fire & smoke protection doors and partition walls

Sound insulation
< 43 dB (-1/-2)
Continuous performance test
200.000; 1 Mio.
Continuous performance test: mechanical stress
C5; C8
Fire protection F (partition walls)
F90
fire protection T (doors)
T90
Fire protection EW (doors)
EW90
Fire protection EI (doors)
EI290
Smoke protection (national: Germany)
RS-1 / RS-2 (Doors)
Smoke protection (Europe)
Sa, S200 (Doors)
Ability to release
fulfilled
Mechanical performance
fulfilled
Mechanical strength
4 (Doors)
Identical face width of doors and partition walls
One profile for various fire resistance classes

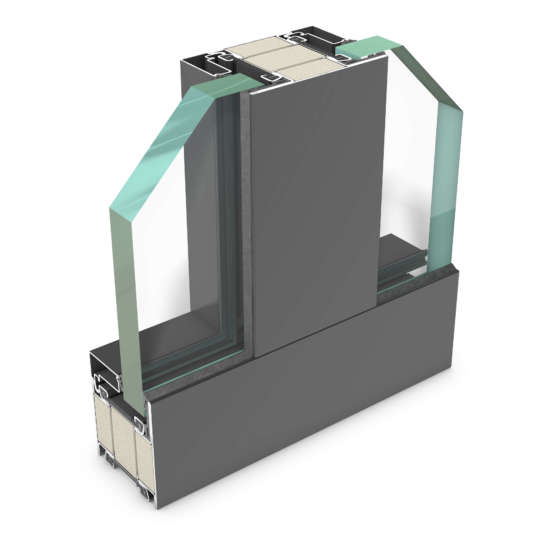

rp hermetic 70FP-60

Steel profile system for fire and smoke protection doors and partition walls

Sound insulation
< 43 dB (0/-1) for Doors
Continuous performance test
200.000; 1 Mio.
Continuous performance test: mechanical stress
C5; C8
Fire protection E (partition walls)
E90
Fire protection EW (doors)
EW90
Fire protection EI (doors)
EI260
Ability to release
fulfilled
Mechanical performance
fulfilled
Mechanical strength
4 (Doors)
Identical face width of doors and partition walls
One profile for various fire resistance classes

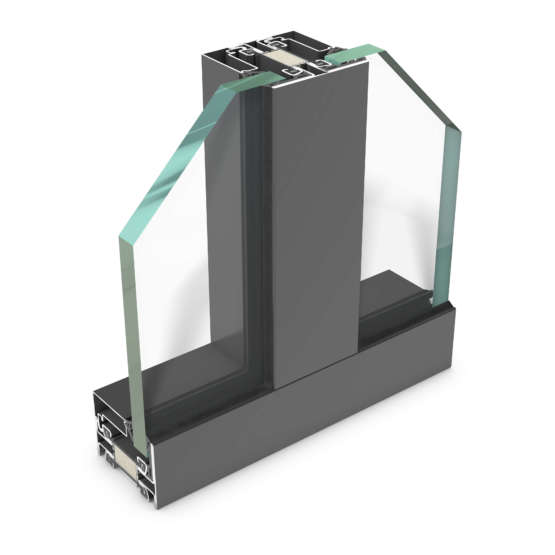

rp hermetic 70FP-30

Steel door profile system for fire and smoke protection doors and partition walls

Burglar resistance
RC(2); 3
Sound insulation
< 44 dB (-1/-2) for Doors
Continuous performance test
200.000; 1 Mio.
Continuous performance test: mechanical stress
C5; C8
Fire protection F (partition walls)
F30
fire protection T (doors)
T30
Fire protection EW (doors)
EW30
Fire protection EI (doors)
EI230
Smoke protection (national: Germany)
RS-1 / RS-2 (Doors)
Smoke protection (Europe)
Sa, S200 (Doors)
Ability to release
fulfilled
Fall protection barrier glazing
fulfilled (Partition walls)
Mechanical performance
fulfilled
Mechanical strength
4 (Doors)
Identical face width of doors and partition walls
One profile for various fire resistance classes

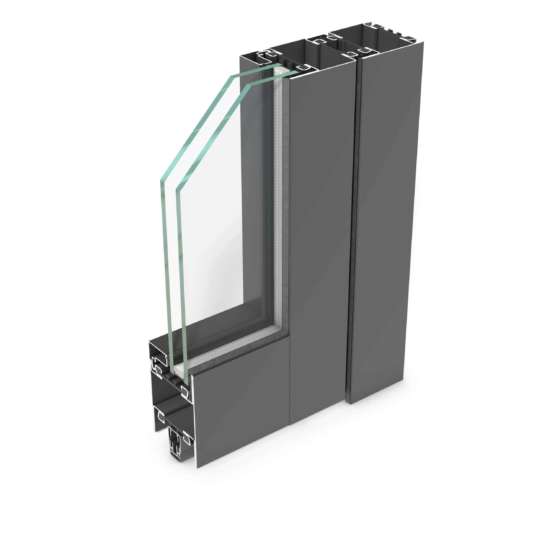

rp hermetic 70D

Steel door profile system for 1-leaf and 2-leaf doors

Resistance under wind load
C2
Air permeability
2
Watertightness
4A
Bullet resistance
FB4NS
Burglar resistance
RC(2); 3
Thermal transmittance
> 1,4 W/(m²K)
Sound insulation
< 36 dB (-2/-4)
Finger trap protection
yes
Continuous performance test
200.000; 1 Mio.
Continuous performance test: mechanical stress
C5; C8; C7 (Finger trap protection)
Ability to release
fulfilled
Mechanical performance
fulfilled
Mechanical strength
4
Finger trap protection and folding sliding doors as possible options
Tool-free glazing bead installation without screw connections

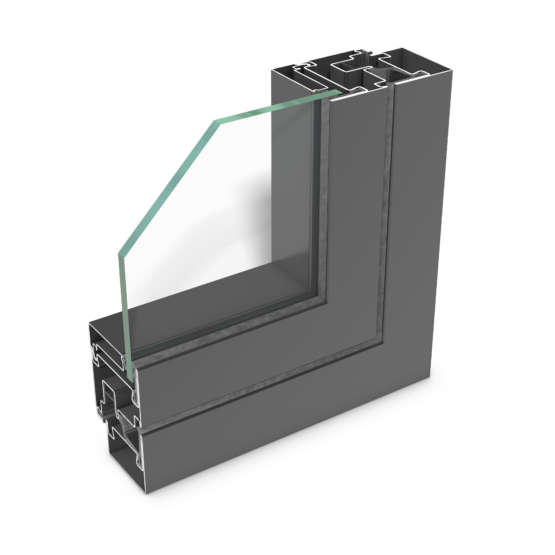

rp hermetic 55W

Steel profile system for partition walls and windows to RC3 (non-insulated)

Burglar resistance
RC 3
Fall protection barrier glazing
erfüllt
Steel or stainless steel
Burglar resistance up to RC3 as a possible option
rp hermetic 55RS

Steel door profile system for 1-leaf and 2-leaf smoke protection doors

Continuous performance test
200000
Continuous performance test: mechanical stress
C5 (approved)
Smoke protection (national: Germany)
RS-1 / RS-2
Smoke protection (Europe)
Sa, S200 (approved)
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)

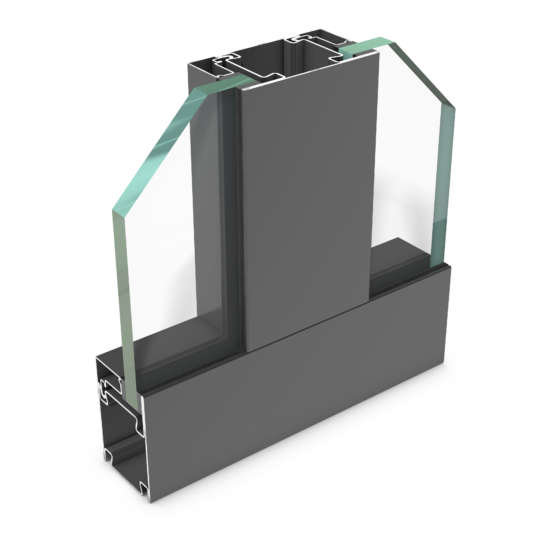

rp hermetic 55FP-90

Steel profile system for fire protection partition walls

Fire protection E (partition walls)
E90
Fire protection EW (partition walls)
EW90
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)
rp hermetic 55FP-60

Steel door profile system for fire protection doors and partition walls

Fire protection E (partition walls)
E60
Fire protection EW (partition walls)
EW60
Fire protection E (doors)
E60
Fire protection EW (doors)
EW60
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)

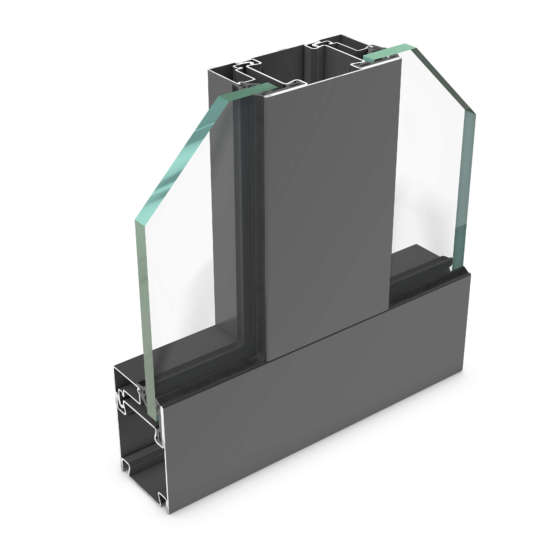

rp hermetic 55FP-30

Steel door profile system for fire protection doors and partition walls

Fire protection G (partition walls)
G30
Fire protection E (partition walls)
E30
Fire protection EW (partition walls)
EW30
Fire protection E (doors)
E30
Fire protection EW (doors)
EW30
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)
rp hermetic 55FP-180

Steel profile system for fire protection partition walls

Fire protection E (partition walls)
E180
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)
rp hermetic 55FP-120

Steel profile system for fire protection partition walls

Fire protection E (partition walls)
E120
Fire protection EW (partition walls)
EW120
Steel or stainless steel
Same appearance as rp hermetic 55W (windows) and rp hermetic 55D (doors)
rp hermetic 55D

Steel door profile system for 1-leaf and 2-leaf doors

Resistance under wind load
C2
Air permeability
2
Watertightness
4A
Burglar resistance
RC 3
Finger trap protection
yes
Ability to release
fulfilled
Mechanical strength
4
Steel or stainless steel
Smoke and finger trap protection doors with the same face width
