Mullion-transom curtain walls made of steel

The mullion-transom curtain walls from RP Technik are eye-catchers and the powerhouses among curtain wall systems. They live up to the highest structural standards and effectively combine extraordinary spans with slim geometries. The high load carrying capacity of steel also makes it possible to use high glass weights for elegant structural glazing facades and thus combine high transparency with functionality.

8Results

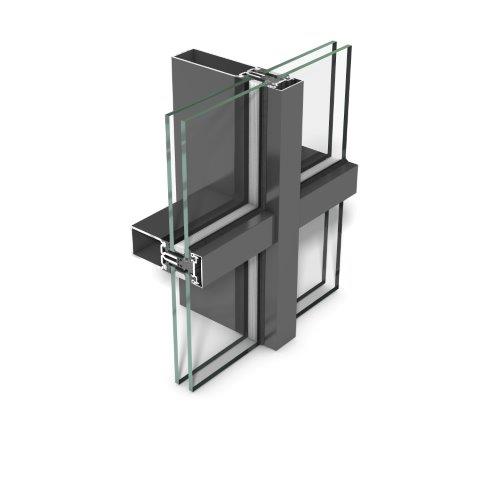

rp tecline 40

Extremely slim mullion-transom curtain walls with a face width of only 40 mm

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
≤1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2
Thermal transmittance
Uf ≥ 0,68 W/m²K
Mixed facades of mullion-transom and add-on facades possible
3 mm wall thickness for high torsional stiffness

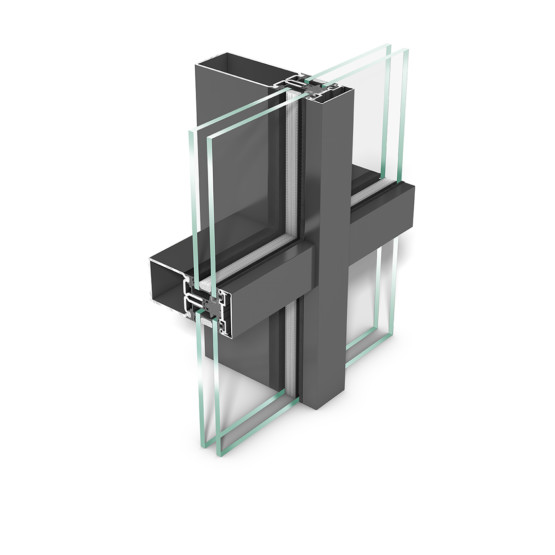

rp tecline 50

mullion-transom curtain walls with a face width of only 50 mm

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2/RC3
Thermal transmittance
Uf ≥ 0,69 W/m²K
Mixed facades of mullion-transom and add-on facades possible
“ProGrip” connection system for a secure grip
rp tecline 60

Mullion-transom facade with 60 mm face width

Resistance under wind load
+ 2,0 /- 3,2 kN/m²; Safety + 3,0 /- 4,8 kN/m²
Air permeability
≤1800 Pa
Watertightness
RE 1800
Impact strength
I5/E5
Burglar resistance
RC2/RC3
Thermal transmittance
Uf ≥ 0,68 W/m²K
Mixed facades of mullion-transom and add-on facades possible
“ProGrip” connection system for a secure grip

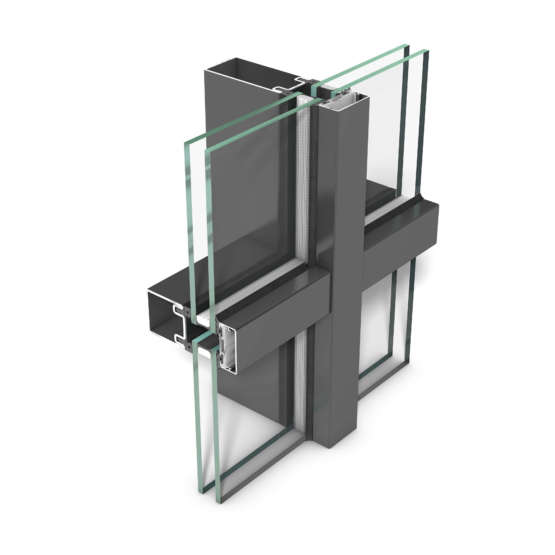

rp tec 45

Slim mullion-transom curtain wall for large spans

Resistance under wind load
±1375 Pa; Security ±2062 Pa
Air permeability
AE
Watertightness
RE 1200
Impact strength
E5-I5
Burglar resistance
RC4
Thermal transmittance
Ucw ≥ 1,4 W/m²K
Sound insulation
≤ 41 dB
Fire protection EI (partition walls)
up to EI-120
Slim face width of 45 mm
Mullion-transom curtain walls made of steel
rp tec 55

Mullion-transom curtain wall, also suited for 0° roof glazing solutions

Resistance under wind load
+2000/-3200 Pa; Safety +3000/-4800 Pa
Air permeability
AE
Watertightness
RE 1800, RE 2400 (0° roof)
Impact strength
E5-I5
Burglar resistance
RC 3
Thermal transmittance
Ucw ≥ 0,59 W/m²K
Sound insulation
≤ 47 dB
Burglar resistance up to RC3
Mullion-transom curtain walls made of steel

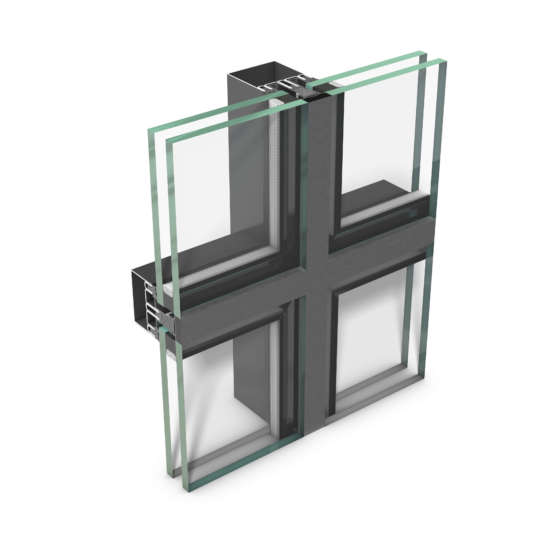

rp tec 55SG

All-glass mullion-transom curtain wall (structural glazing)

Burglar resistance
RC 2
Burglar resistance up to RC2
Mullion-transom curtain wall for all-glass solutions
rp tec 60

Mullion-transom curtain wall with a face width of 60 mm for large spans

Resistance under wind load
±1375 Pa / Security ±2062 Pa (facade) ±2000 Pa / Security ±3000 Pa (for 3° glass roof)
Air permeability
AE
Watertightness
RE 1200
Impact strength
E5-I5
Thermal transmittance
Ucw ≥ 1,7 W/m²K
Sound insulation
≤ 45 dB (vertical glazing)
Fire protection EI (partition walls)
up to EI-120
Face width of 60 mm
Also suited for 3° roof glazing

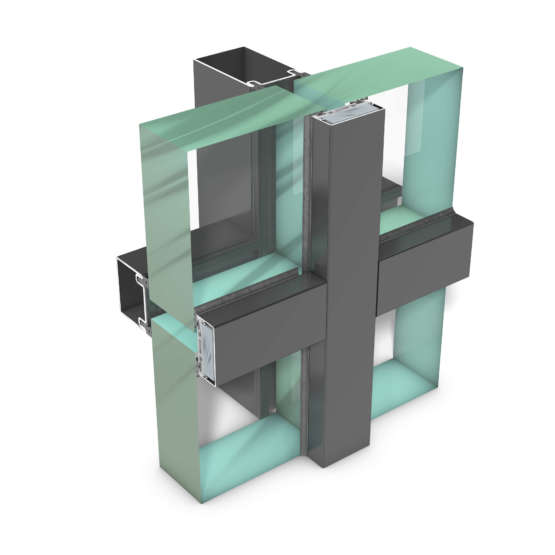

rp tec 60BR

Mullion-transom curtain wall for high safety requirements

Resistance under wind load
±1375 Pa, Security ±2062 Pa
Air permeability
AE
Watertightness
RE 1200
Impact strength
E5-I5
Bullet resistance
FB 6
Burglar resistance
RC4
Burglar resistance up to RC4, bullet resistance up to FB6
Face width of 60 mm

Reference projects

Implement-
ations.
Inspirations.

The wealth of ideas of architects, planners and building owners is reflected in our projects, at home and abroad. And the systems from RP Technik open the door for the actual implementation of these ideas: striking in design, functionality and quality. More >>

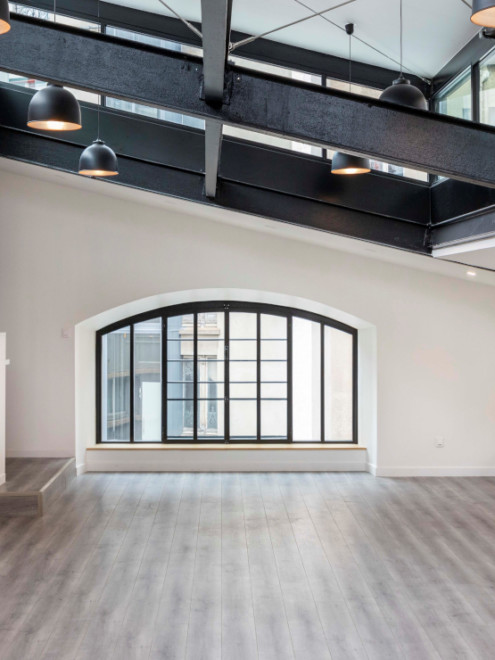

Rue de Lancry, rp fineline 70W, innen

Rue de Lancry, France

In Rue de Lancry, in the heart of the 10th arrondissement of Paris, there is a charming building …

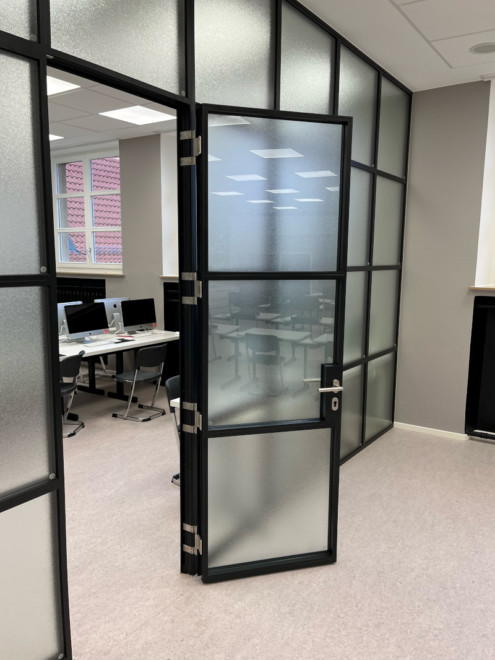

Clemens-August-high school, Cloppenburg

The Clemens-August-high school in Cloppenburg is an outstanding example of the integration of …


Domaine Faiveley, Wine Cellar

Domaine Faiveley, France

The rp fineline 70 system was used in 2018 in the wine factory “Domaine Faiveley”, in one of the …


Rosa Bonheur,Paris Sitzbereich

Rosa Bonheur, Paris

Imagine sitting in a restaurant on a ship on the Seine in Paris, looking out through the built-in …


Schwimmbad Pantin rp fineline 70 Terrasse (2)

Swimming pool, Pantin/FR

Built in 1937, the swimming pool is one of the oldest in Île-de-France and is now a listed …


Orangerie, Greiz, rp fineline 70W exterior

Orangery, Greiz

The orangery, described by Haas Architects as “an approximation of the building’s clear, …


Zentralbibliothek München, rp hermetic 70D

Central library, Munich

The extension of the Munich Central Library, realized by meck architekten, was the winner of the …


H+S-Präzisionsfolien, Vohenstrauß, rp fineline 70W Fenster außen (2)

H+S-precision films, Vohenstrauß

Filigree rp fineline window elements as well as fire doors and partition walls of the rp hermetic …


Wiesenburg Berlin Vorhof rp fineline 70w

Wiesenburg, Berlin

The Wiesenburg in Berlin combines creativity with social responsibility. Ateliers, studios, …


Alte Likörfabrik Horn, Leipzig Eingangsbereich rp fineline 70D

Old liqueur factory,Horn

In 1934, this large, four-storey brick Gothic-style factory was built at the former headquarters of …


Free University of Berlin side view outside rp fineline 70W & rp fineline 70D

Free University, Institute of Chemistry, Berlin

Described by architect Friedhelm Nussbaum as a “treasure with a lot of charm”, the institute …


rp fineline 70W, Fenster innen Weite Ansicht

Elementary school, Frankfurt (Oder)

School? Boring? Not with RP Technik! At the listed school building of the century before last a …


Wintergarten Rp Fineline 60W Gesamtansicht

Wintergarden, France

This rp fineline 60 winter garden was the first in a long line of winter gardens that reintroduced …



Educational center castle eulenbroich, Rösrath

Owned by the city of Rösrath, the historic building from the 18th century has developed into an …


Rp Fineline 70W Detailansicht Außen

La Rue Raspail, France

After removing the former bay windows and creating a new support structure for the new rp fineline …


Eingangstür Nahaufnahme

Cultural Church St.Jakobi, „Stralsund”

First mentioned in 1303, the St. Jakobi church is now used as a cultural church. The entrances to …


Innenansicht Rp Tec 45

Poste du Louvre, Paris/FR

Originally completed in 1886, “La Poste du Louvre” was renovated in 2022 as a typical Haussmann …



Orangerie Tuin de Lage Oosterbeek /NL

This beautiful orangery invites you to relax. Here you can enjoy art just as much as a piece of …


Waldhausklinik Berlin, rp fineline 70W

Villa Waldhaus, Berlin

Crystal clear, unobstructed and open viewing angles thanks to the particularly narrow and filigree …


Humboldtforum Frontasicht, Spree

Humboldt Forum, Berlin

Let’s enjoy together the unique sight of the Humboldt Forum with the doors and windows of the rp …


Fluentum Clayallee Berlin, Interior view terrace glazing, rp hermetic 70D

Fluentum Clayallee, Berlin

Fluentum is a non-profit platform for the production, collection and presentation of contemporary …



Herzogin Garten Dresden

The Orangerie building, which was almost completely destroyed in the Second World War, was rebuilt …


Energiefabrik Knappenrode rp fineline 70W 60W staircase with steel windows

Energiefabrik Knappenrode, Hoyerswerda

Even from a distance, you can see the red brick of the 100-year-old briquette factory in …


Hotel Meeresbummler Stahl-Glas System Rp Hermetic 70D Detail Vorschau

Container Hotel Meeresbummler, Markdorf

For 16 years, the freight container travelled the oceans. Now, this long-serving “ocean rover” …


Ericus Hamburg Stahl Aufsatzfassade rp tec 60-1 Innen 1 Vorschau

Eiffel Building, Maastricht/NL

The former industrial complex is a national, listed building and today a place where people live …


Therme Bad Ems Stahl Aufsatzfassade rp tec 50-1 Gesamt Vorschau

Wellness spa, Bad Ems

Bad Ems near Koblenz is home to one of Germany’s most modern wellness oases. Over 6,000 square …


Juedisches Museum Muenchen Aufsatzfassade rp tec 55-1SG Gesamt Vorschau

Jewish Museum, Munich

BC: A special architectural ensemble constitutes a distinctive part of Munich’s city centre. The …


Inselparkhalle Hamburg Aufsatzfassade rp tec 55-1 Eckansicht Vorschau

Inselparkhalle, Hamburg

Called edel-optics.de Arena since 2017, the Inselparkhalle (Island Park Hall) in Hamburg’s …


Fulton Metro Pfosten Riegel Fassade rp tec 45 Innen 3 Vorschau

Fulton Metro Main Station, New York/USA

It was opened with the words “Welcome to the station of the 21st century”. 9 subway lines converge …


Bregenz Festpielhaus Aufsatzfassade rp tec 50-1SG Außen Vorschau

Festspielhaus in Bregenz, Austria

It was all “curtains up” for the renovation, expansion, and optimisation of the Festspielhaus …


Ericus Hamburg steel elevated facade Rp Tec 60 1 total night

Ericus-Contor, Hamburg

Together with the new building of the Spiegel publishing house, the Ericus-Contor forms the …



Digitales Zentrum Schwaben

The newly established Zentrum Allgäu Digital in Kempten offers fledgling entrepreneurs plenty of …

rp tecline

The
Facade
Line

Filigree Mullion-transom curtain walls made of steel with face widths of 40, 50 or 60 mm.
